PIR motion sensor Mounting Bracket

Acrylic bracket for mounting the HC-SR501 PIR Motion Sensor Module.

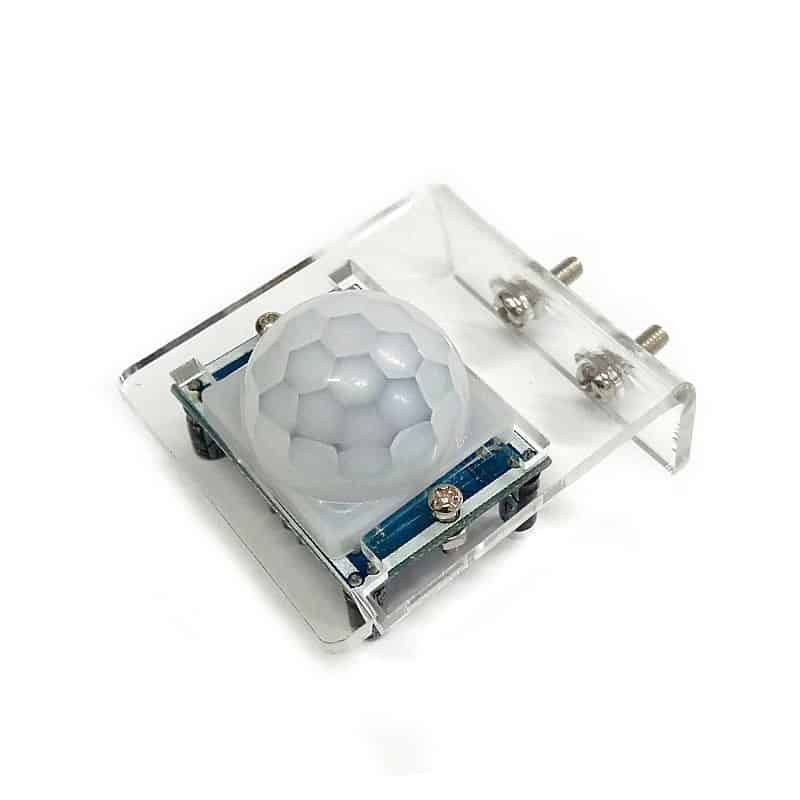

The HC-SR501 PIR Motion Sensor Mounting Bracket is an acrylic bracket for mounting the HC-SR501 PIR Motion Sensor Module.

Highlights

• The bracket has two small holes in the top for mounting the sensor to the bracket.  Two small screws and nuts are provided for attaching the sensor to the bracket.
• The flange has two larger holes for mounting the bracket to a surface. Two larger screws and nuts are provided for attaching the sensor to the bracket or other hardware can be used depending on the mounting requirement.
• The HC-SR501 PIR Motion Sensor can be inserted from either side of the bracket depending on other mounting considerations.

1. Colour: Transparent
2. Dimensions    W x L    40 x 48mm (0.9 x 0.9″)
3. Sensor hole W x L    23 x 23mm (0.75″)
4. Material : Acrylic 3mm thick
