NODEMCU ESP32 Development Board

NodeMCU is famous for the ESP8266E module with the LUA programming language. Now, this is a more powerful NodeMCU with ESP32 on it.

ESP32 is the big brother of ESP8266. It comes with dual-core 32-bit processor, built-in WiFi and Bluetooth, more RAM and Flash memory, more GPIO, more ADC, and many other peripherals :)

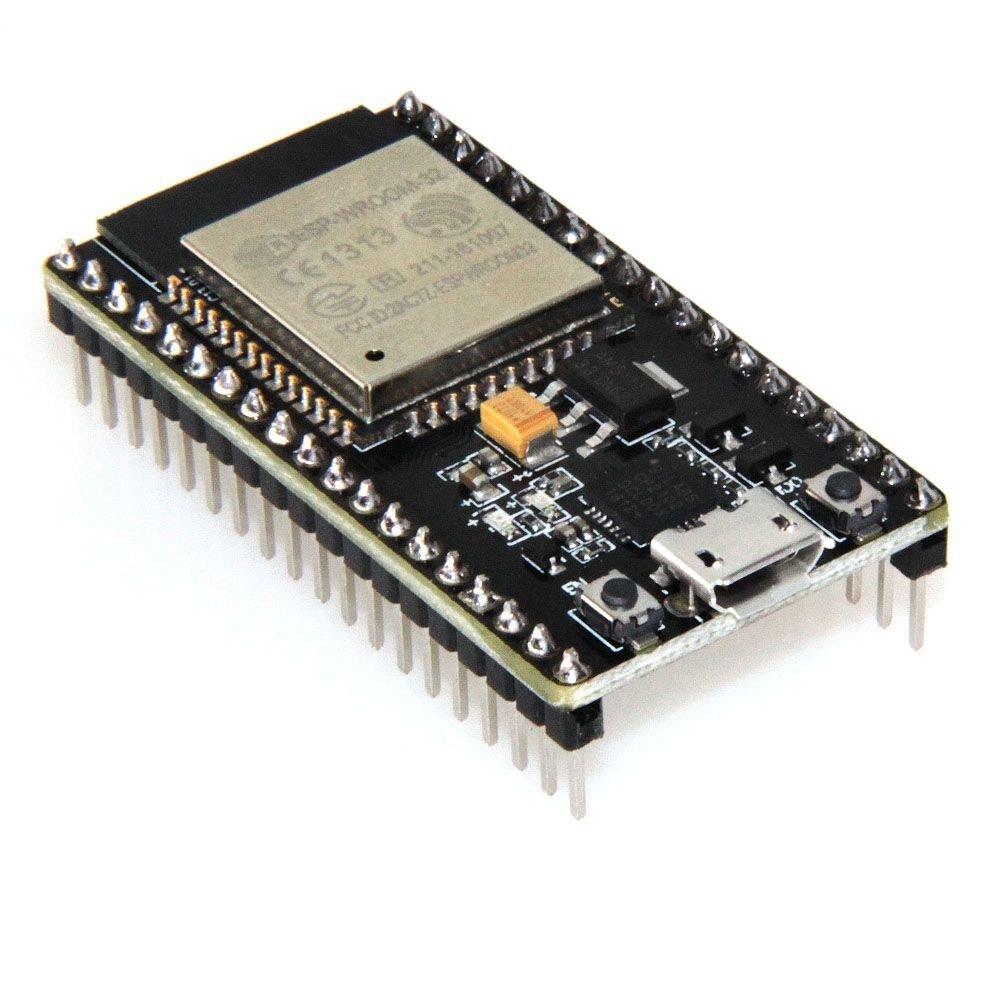

NodeMCU ESP32 is an ESP-WROOM-32 module in breadboard friendly form factor, you can develop your project by using this compact microcontroller on a breadboard.

EMCU.

• NodeMCU based on ESP-WROOM-32 module
• 30 GPIO Version
• ESP32 is a dual-core 32-bit processor with built-in 2.4 GHz Wi-Fi and Bluetooth
• 4MByte flash memory
• 520KByte RAM
• 2.2 to 3.6V Operating voltage range
• In breadboard-friendly breakout
• USB micro B for power and Serial communication, use to load the program and serial debugging too

• Github, NodeMCU ESP32 Dev firmware
• Getting Started with NodeMCU 32 board
• Wiki page
• ESP-WROOM-32 Datasheet
• CP210x USB driver
