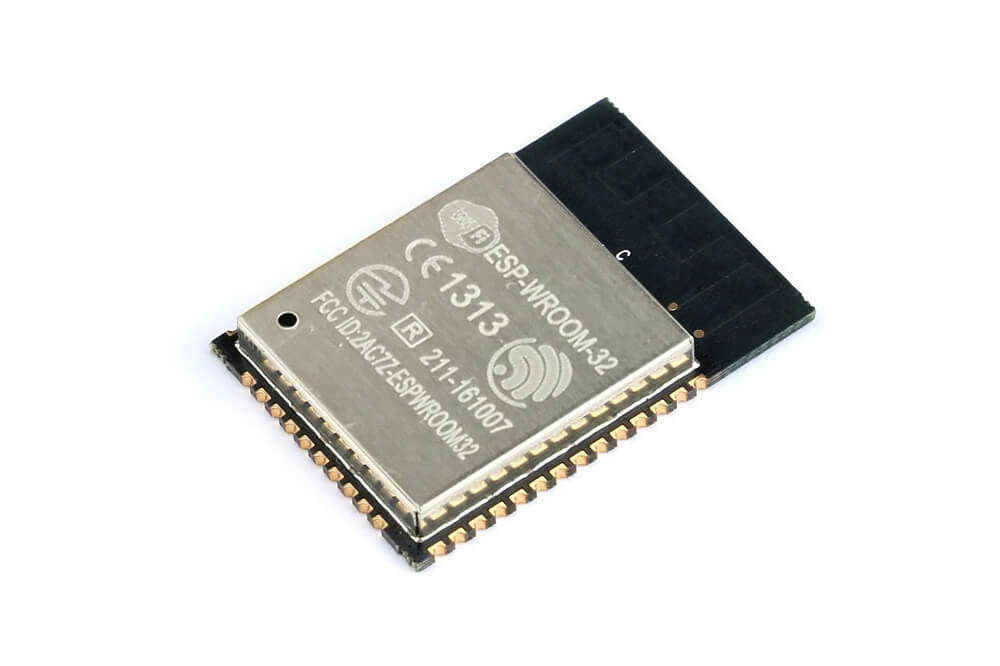

ESP32 Chip

A chip from the ESP32 family based on the Espressif ESP32-WROOM-32E chipset. Designed for communication in a WiFi network in the 2.4 GHz band and the standard 802.11b/g/n (802.11n up to 150 Mb/s) and Bluetooth BLE/v4.2. The chip is available in surface-mount housing - SMD. It has 32 GPIO pins, including popular interfaces such as UART, SPI and I2C. All leads are labeled, which makes the work much easier. The compact size of the module is 18 x 25.5 x 3.1 mm.

• Higher processing power and low power requirements compared to its predecessor ESP8266
• System on a Chip (SoC) family
• Allows communication via WiFi 802.11b/g/n and via Bluetooth BLE and low-power version 4.2
• Small size is a big advantage - 18 x 25.5 x 3.1 mm and dedicated to using in compact projects
• ESP32 wireless communication modules form the basis of IoT

• ESP-WROOM-32E chip
• Microcontroller: ESP32-D0WD-V3
• Processor: Dual-Core 32-bit Xtensa LX6
• Clock speed: up to 240 MHz
• ROM: 448 KB
• SRAM: 520 KB
• PSRAM: 16 MB
• WiFi Standard: 802.11b/g/n (802.11n up to 150 Mbps)
• A-MPDU and A-MSDU aggregation
• Bandwidth: 2.4 GHz to 2.5 GHz
• Bluetooth Standard: V4.2 BR/EDR
• AFH, CVSD, SBC
• As many as 32 GPIO pinouts including but not limited to UART, SPI, SDIO, I2C, PWM outputs, I2S, IR, ADC, DAC, SD card interface and more
• Quartz oscillator: 40 MHz
• SPI Flash memory: 4 MB
• Supply voltage: 3 V to 3.6 V
• Mounting: SMD
• Dimensions: 18 x 25.5 x 3.1 mm
