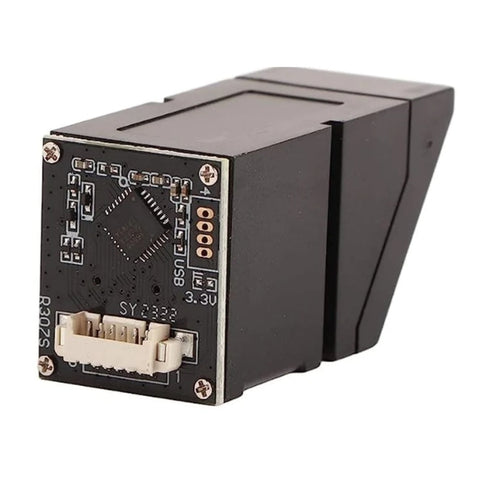

Optical Fingerprint Sensor (R307)

Secure your project with biometrics – this all-in-one optical fingerprint sensor will make adding fingerprint detection and verification super simple. These modules are typically used in safes – there’s a high powered DSP chip that does the image rendering, calculation, feature-finding and searching. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search. You can also enroll new fingers directly up to 162 finger prints can be stored in the onboard FLASH memory. There’s a red LED in the lens that lights up during a photo so you know its working.

• Integrated image collecting and algorithm chip together, ALL-in-One
• Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
• Low power consumption, low cost, small size, excellent performance
• Professional optical technology, precise module manufacturing techniques
• Good image processing capabilities, can successfully capture image up to resolution 500 dpi

• Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying
• Supply Current: Current: Peak current: Fingerprint image time: Window size: 14 x 18 mm
• Matching mode: Match mode (1:1)
• Search mode (1: N)
• Signature File: 256 bytes
• Template files: 512 bytes
• Storage capacity: 1,000
• Safety level: five (from low to high: 1,2,3,4,5)
• False Accept Rate (FAR): False Reject Rate (FRR): Search time: PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
• Communication baud rate (UART): (9600 x N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
• Working environment:
• Temperature: -20 ℃ to +50 ℃
• Relative Humidity: 40% RH-85% RH (non-condensing)
• Storage environment:
• Temperature: -40 ℃ to +85 ℃

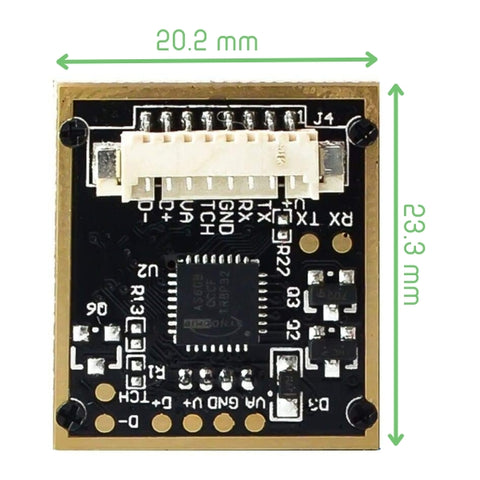

• Split: Fingerprint sensor: 56 x 20 x21.5mm
