DFRobot Gravity Analog TDS Meter Sensor – Waterproof Probe

The DFRobot Gravity Analog TDS Sensor is designed to measure the Total Dissolved Solids (TDS) level in water for quality monitoring applications. It outputs a stable 0–2.3V analog signal compatible with 3.3V and 5V microcontrollers such as Arduino. The module uses an AC excitation source to reduce probe polarization and improve measurement reliability. Equipped with a waterproof probe and Gravity plug-and-play interface, it ensures easy integration into embedded systems. Ideal for water quality testing, hydroponics, and domestic water monitoring systems.

• Analog TDS measurement module

• Wide input voltage 3.3–5.5V DC

• 0–2.3V analog signal output

• AC excitation to prevent probe polarization

• Waterproof immersion probe
• Gravity interface plug-and-play design
• Compatible with Arduino boards
• Supports 3.3V and 5V controllers

• Stable and repeatable measurements
• Compact control board layout

• Suitable for continuous monitoring systems

• Operating Voltage: 3.3–5.5V DC

• Analog Output Voltage: 0–2.3V

• Excitation Mode: AC signal

• Measurement Parameter: Total Dissolved Solids (TDS)

• Probe Type: Waterproof immersion probe

• Output Interface: Analog

• Compatible Controllers: 3.3V / 5V MCU

• Connection Type: Gravity 3-pin interface

• Recommended Temperature Range: 0–60°C

• Calibration: Software calibration supported

• Application Media: Fresh water

• Schematic

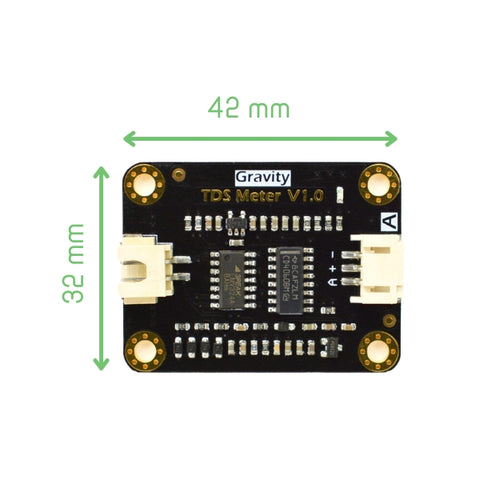

• Layout with Dimension
• CD4060BM96 Datasheet
• LMV324A-SR Datasheet
• DFRobot Gravity TDS Sensor Library(Github)

• TDS Meter using TDS & Temperature Sensor with Arduino || Measure Water Quality in PPM
